LEDaliClock matrix pattern

Show and Tell
1

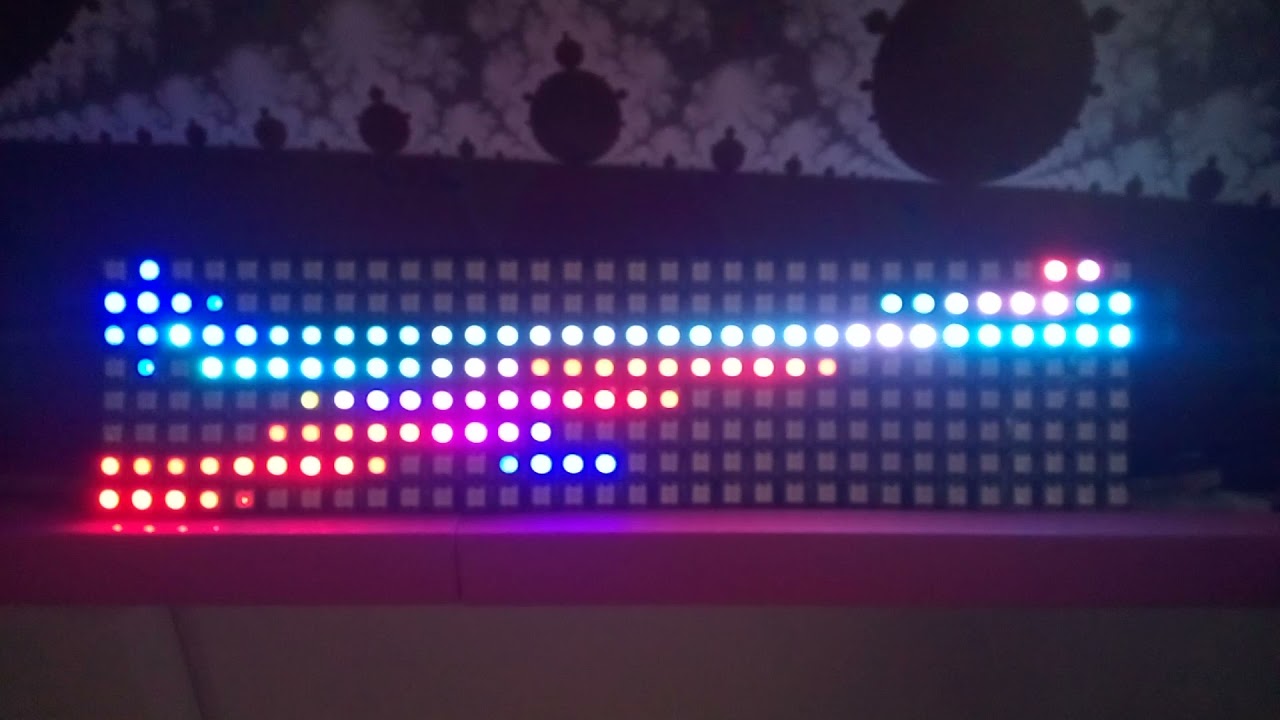

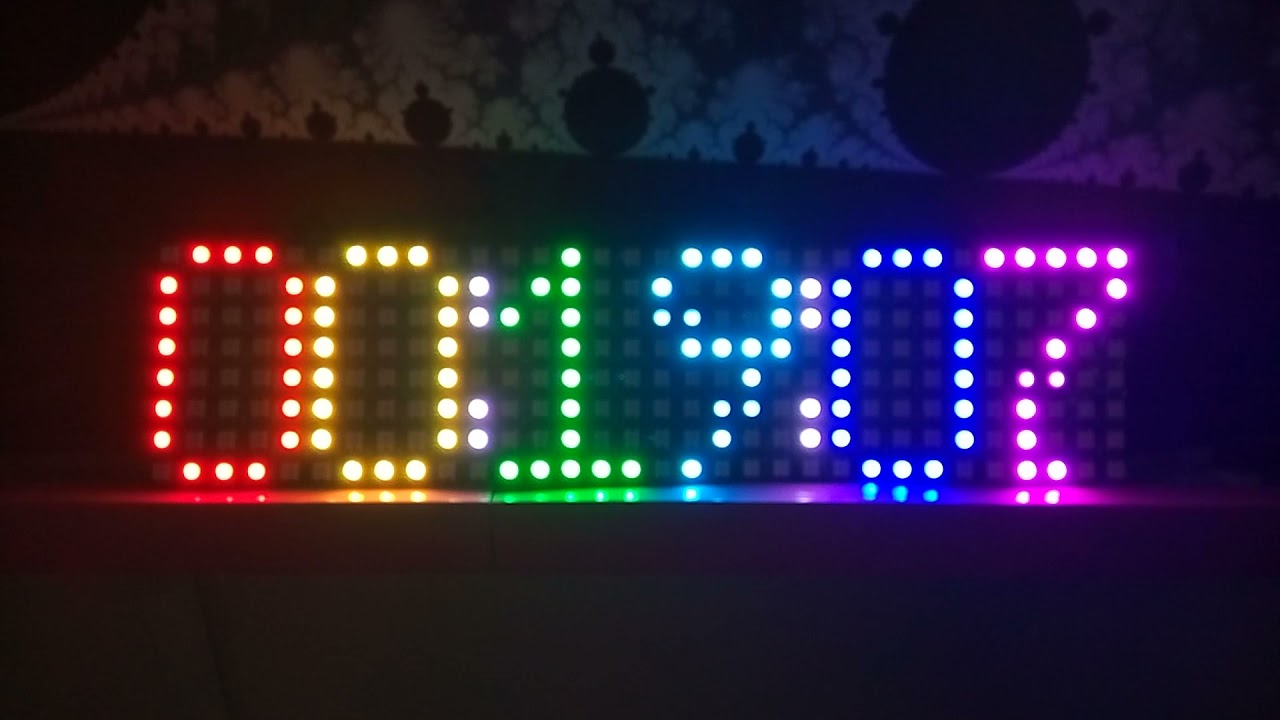

Inspired by XDaliClock I made my 8x32 LED matrix display a clock in which the digits morph!

YouTube video: LEDaliClock

Runs at 36fps on a very warm v3 pico.

This is a hand-drawn, 7-vector-per-digit 5x8 pixel font, in rainbow form because I didn’t have any space between the digits. I also made a 6x8 font, but then I could only comfortably display HH:MM and it’s not very interesting when something only animates once a minute!

The Wu antialiased line drawing algorithm works with non-integer end coordinates, but also doesn’t antialias at all for 45° lines between integer coordinates, and I took advantage of this while drawing the fonts. I scaled my existing fonts to 4x8 but it looked all lumpy because it ruined the 45° trick. At this resolution, anyways, hand-tuned characters are called for.

3 Likes
2

This is super cool! Can’t wait to look through the code and see how this magic works.

1 Like
3

Same. Wondering if we can optimize this to run much faster too.

4

I just reviewed the code and added a bunch of comments. Let me know if anything is unclear. I might have over-optimized because it started getting slower.

The one thing I am still trying to get right is the gamma of the antialiased pixels. These WS2812 LEDs are eye-searingly bright so when I turn them down to a safe level I am down to only a few bits of color depth. I am thinking of pasting my own HSVtoRGB in here so that I can use v=a*a in PixelMax() instead of multiplying r,g,b separately but other ideas are of course most welcome!

Come to think of it I could do the squaring at render time for a little speedup … but I’ll let y’all at it first!

// This pattern creates a rectangular framebuffer
// and does its own integer coordinate mapping
// and draws a digital clock
// with morphing digits
// using Xiaolin Wu's antialiased line algorithm.

var blur = 0
export function sliderMotion_Blur(v) {
  blur = v * 0.9
}

// Duplicate PixelBlaze 'Mapper' functionality without normalizing

var width = 32
var height = 8

var coordmap = array(pixelCount)

for (index=0; index<pixelCount; index++) {
  x = floor(index / height)
  y = index % height
  y = x % 2 == 1 ? height - 1 - y : y // I have a zigzag 32x8 LED matrix
  coords = array(2)
  coords[0] = x
  coords[1] = y
  coordmap[index] = coords
}

// RGB framebuffer
// ... Storage

var Pr = array(width); for (i=0; i<width; i++) Pr[i] = array(height)
var Pg = array(width); for (i=0; i<width; i++) Pg[i] = array(height)
var Pb = array(width); for (i=0; i<width; i++) Pb[i] = array(height)

// ... Render a pixel
//  - Only used by WuLine, so we do 'alpha' here to keep WuLine readable
//  - Uses max() so overlapping line pixels don't make bright spots

function PixelMax(x,y,a,r,g,b) {
  //x = floor(x)
  //y = floor(y)
  a = a*a // gamma somethingsomething?
  if (x >= 0 && x < width && y >= 0 && y < height) {
    Pr[x][y] = max(Pr[x][y], clamp(r*a, 0, 1))
    Pg[x][y] = max(Pg[x][y], clamp(g*a, 0, 1))
    Pb[x][y] = max(Pb[x][y], clamp(b*a, 0, 1))
  }
}

// Xiaolin Wu's antialiased line algorithm
// Adapted from https://gist.github.com/polyamide/3f33cb4dc69e22fbf8b66cee39b78d60
// (replaced utility functions with PixelBlaze built-ins)

function WuLine(x0, y0, x1, y1, r, g, b) {
  if (x0 == x1 && y0 == y1) return

  steep = abs(y1 - y0) > abs(x1 - x0);

  if (steep) {
    tmp = y0; y0 = x0; x0 = tmp;
    tmp = y1; y1 = x1; x1 = tmp;
  }

  if (x0 > x1) {
    tmp = x0; x0 = x1; x1 = tmp;
    tmp = y0; y0 = y1; y1 = tmp;
  }

  dx = x1 - x0;
  dy = y1 - y0;
  gradient = dy / dx;

  xEnd = round(x0);
  yEnd = y0 + gradient * (xEnd - x0);
  xGap = 1 - frac(x0 + 0.5);
  xPx1 = xEnd;
  yPx1 = trunc(yEnd);

  if (steep) {
    PixelMax(yPx1, xPx1, 1 - frac(yEnd) * xGap, r, g, b )
    PixelMax(yPx1 + 1, xPx1, frac(yEnd) * xGap, r, g, b )
  } else {
    PixelMax(xPx1, yPx1, 1 - frac(yEnd) * xGap, r, g, b )
    PixelMax(xPx1, yPx1 + 1, frac(yEnd) * xGap, r, g, b )
  }

  intery = yEnd + gradient;

  xEnd = round(x1);
  yEnd = y1 + gradient * (xEnd - x1);
  xGap = frac(x1 + 0.5);

  xPx2 = xEnd;
  yPx2 = trunc(yEnd);

  if (steep) {
    PixelMax(yPx2, xPx2, 1 - frac(yEnd) * xGap, r, g, b )
    PixelMax(yPx2 + 1, xPx2, frac(yEnd) * xGap, r, g, b )
  } else {
    PixelMax(xPx2, yPx2, 1 - frac(yEnd) * xGap, r, g, b )
    PixelMax(xPx2, yPx2 + 1, frac(yEnd) * xGap, r, g, b )
  }

  if (steep) {
    for (x = xPx1 + 1; x <= xPx2 - 1; x++) {
      PixelMax(trunc(intery), x, 1 - frac(intery), r, g, b )
      PixelMax(trunc(intery) + 1, x, frac(intery), r, g, b )
      intery = intery + gradient;
    }
  } else {
    for (x = xPx1 + 1; x <= xPx2 - 1; x++) {
      PixelMax(x, trunc(intery), 1 - frac(intery), r, g, b )
      PixelMax(x, trunc(intery) + 1, frac(intery), r, g, b )
      intery = intery + gradient
    }
  }
}

// Digit data - 5x8 pixels
// - each digit is 7 sequential lines
//   represented by a list of 8 x,y coordinates

var Digits = array(10)
for (i=0;i<10;i++){
  Digits[i]=array(8)
  for (j=0;j<8;j++){
    Digits[i][j]=array(2)
  }
}

Digits[0][0][0] = 1
Digits[0][0][1] = 0
Digits[0][1][0] = 3
Digits[0][1][1] = 0
Digits[0][2][0] = 4
Digits[0][2][1] = 1
Digits[0][3][0] = 4
Digits[0][3][1] = 6
Digits[0][4][0] = 3
Digits[0][4][1] = 7
Digits[0][5][0] = 1
Digits[0][5][1] = 7
Digits[0][6][0] = 0
Digits[0][6][1] = 6
Digits[0][7][0] = 0
Digits[0][7][1] = 1
Digits[1][0][0] = 0
Digits[1][0][1] = 2
Digits[1][1][0] = 2
Digits[1][1][1] = 0
Digits[1][2][0] = 2
Digits[1][2][1] = 1
Digits[1][3][0] = 2
Digits[1][3][1] = 3
Digits[1][4][0] = 2
Digits[1][4][1] = 5
Digits[1][5][0] = 2
Digits[1][5][1] = 7
Digits[1][6][0] = 0
Digits[1][6][1] = 7
Digits[1][7][0] = 4
Digits[1][7][1] = 7
Digits[2][0][0] = 0
Digits[2][0][1] = 1
Digits[2][1][0] = 1
Digits[2][1][1] = 0
Digits[2][2][0] = 3
Digits[2][2][1] = 0
Digits[2][3][0] = 4
Digits[2][3][1] = 1
Digits[2][4][0] = 4
Digits[2][4][1] = 2
Digits[2][5][0] = 0
Digits[2][5][1] = 6
Digits[2][6][0] = 0
Digits[2][6][1] = 7
Digits[2][7][0] = 4
Digits[2][7][1] = 7
Digits[3][0][0] = 0
Digits[3][0][1] = 1
Digits[3][1][0] = 2
Digits[3][1][1] = 0
Digits[3][2][0] = 4
Digits[3][2][1] = 1
Digits[3][3][0] = 2
Digits[3][3][1] = 3
Digits[3][4][0] = 3
Digits[3][4][1] = 4
Digits[3][5][0] = 4
Digits[3][5][1] = 6
Digits[3][6][0] = 2
Digits[3][6][1] = 7
Digits[3][7][0] = 0
Digits[3][7][1] = 6
Digits[4][0][0] = 3
Digits[4][0][1] = 0
Digits[4][1][0] = 3
Digits[4][1][1] = 3
Digits[4][2][0] = 4
Digits[4][2][1] = 3
Digits[4][3][0] = 3
Digits[4][3][1] = 3
Digits[4][4][0] = 3
Digits[4][4][1] = 7
Digits[4][5][0] = 3
Digits[4][5][1] = 3
Digits[4][6][0] = 0
Digits[4][6][1] = 3
Digits[4][7][0] = 0
Digits[4][7][1] = 0
Digits[5][0][0] = 4
Digits[5][0][1] = 0
Digits[5][1][0] = 0
Digits[5][1][1] = 0
Digits[5][2][0] = 0
Digits[5][2][1] = 4
Digits[5][3][0] = 2
Digits[5][3][1] = 3
Digits[5][4][0] = 4
Digits[5][4][1] = 4
Digits[5][5][0] = 4
Digits[5][5][1] = 6
Digits[5][6][0] = 2
Digits[5][6][1] = 7
Digits[5][7][0] = 0
Digits[5][7][1] = 6
Digits[6][0][0] = 3
Digits[6][0][1] = 0
Digits[6][1][0] = 2
Digits[6][1][1] = 0
Digits[6][2][0] = 0
Digits[6][2][1] = 2
Digits[6][3][0] = 0
Digits[6][3][1] = 6
Digits[6][4][0] = 2
Digits[6][4][1] = 7
Digits[6][5][0] = 4
Digits[6][5][1] = 5
Digits[6][6][0] = 3
Digits[6][6][1] = 3
Digits[6][7][0] = 1
Digits[6][7][1] = 3
Digits[7][0][0] = 0
Digits[7][0][1] = 0
Digits[7][1][0] = 2
Digits[7][1][1] = 0
Digits[7][2][0] = 4
Digits[7][2][1] = 0
Digits[7][3][0] = 4
Digits[7][3][1] = 1
Digits[7][4][0] = 2
Digits[7][4][1] = 3
Digits[7][5][0] = 1
Digits[7][5][1] = 5
Digits[7][6][0] = 1
Digits[7][6][1] = 7
Digits[7][7][0] = 2
Digits[7][7][1] = 7
Digits[8][0][0] = 1
Digits[8][0][1] = 0
Digits[8][1][0] = 3
Digits[8][1][1] = 0
Digits[8][2][0] = 4
Digits[8][2][1] = 1
Digits[8][3][0] = 0
Digits[8][3][1] = 5
Digits[8][4][0] = 1
Digits[8][4][1] = 7
Digits[8][5][0] = 3
Digits[8][5][1] = 7
Digits[8][6][0] = 4
Digits[8][6][1] = 5
Digits[8][7][0] = 0
Digits[8][7][1] = 1
Digits[9][0][0] = 3
Digits[9][0][1] = 3
Digits[9][1][0] = 1
Digits[9][1][1] = 3
Digits[9][2][0] = 0
Digits[9][2][1] = 1
Digits[9][3][0] = 1
Digits[9][3][1] = 0
Digits[9][4][0] = 3
Digits[9][4][1] = 0
Digits[9][5][0] = 4
Digits[9][5][1] = 1
Digits[9][6][0] = 4
Digits[9][6][1] = 3
Digits[9][7][0] = 1
Digits[9][7][1] = 7

// lerp is used on the line ends to morph the digits

function lerp(t,a,b){
  return a*(1-t)+b*t
}

// Draw a Digit
// - starting at x,y
// - morph each line end between d1,d2 using t (0..1)
// - draw WuLine with r,g,b

function DrawDigit(x,y,dd1,dd2,t,r,g,b) {
  d1 = Digits[dd1]

  if (dd1==dd2) { // skip lerp if digits are the same
    for (L=0;L<7;L++) {
      WuLine(
        x + d1[L][0],
        y + d1[L][1],
        x + d1[L+1][0],
        y + d1[L+1][1],
        r, g, b
      )
    }
  } else {
    d2 = Digits[dd2]
    for (L=0;L<7;L++) {
      WuLine(
        x + lerp(t,d1[L][0],d2[L][0]),
        y + lerp(t,d1[L][1],d2[L][1]),
        x + lerp(t,d1[L+1][0],d2[L+1][0]),
        y + lerp(t,d1[L+1][1],d2[L+1][1]),
        r, g, b
      )
    }
  }
}

// Render-related variables persistent between frames
export var lastsecond = -1
export var ms = 0

// Clear (or fade if blur enabled) framebuffer
// and render the current time

export function beforeRender(delta) {
  for (i=0; i<width; i++) {
    for (j=0; j<height; j++) {
      Pr[i][j] = blur * Pr[i][j]
      Pg[i][j] = blur * Pg[i][j]
      Pb[i][j] = blur * Pb[i][j]
    }
  }

  // Extract digits for each part of current time
  // and next time unit with 'n' prefix
  // (e.g. 'nm2' is second digit of next minute)
  // and collect milliseconds from delta in 'ms'
  hour = clockHour()
  h2 = hour % 10
  h1 = (hour - h2)/10

  nexthour = (hour + 1) % 24
  nh2 = nexthour % 10
  nh1 = (nexthour - nh2)/10

  minute = clockMinute()
  m2 = minute % 10
  m1 = (minute - m2)/10

  nextminute = (minute + 1) % 60
  nm2 = nextminute % 10
  nm1 = (nextminute - nm2)/10

  second = clockSecond()
  s2 = second % 10
  s1 = (second - s2)/10

  nextsecond = (second + 1) % 60
  ns2 = nextsecond % 10
  ns1 = (nextsecond - ns2)/10

  if (second == lastsecond) {
    ms = clamp(ms + delta, 0, 1000)
  } else {
    ms = 0
    lastsecond = second
  }

  // transition to next second digit
  // with wave transition around (0.1 .. 0.9)
  // hint: 1000 / 1428.57142 =~ 0.7
  ts = clamp( wave(clamp(ms/1428.57142-0.1,0,1)-0.25), 0,1)
  tm = second == 59 ? ts : 0
  th = (second == 59 && minute == 59) ? tm : 0

  // Rainbow digits because they are right next to each other
  DrawDigit(0,0,h1,nh1,th,1,0,0)
  DrawDigit(5,0,h2,nh2,th,1,1,0)
  DrawDigit(11,0,m1,nm1,tm,0,1,0)
  DrawDigit(16,0,m2,nm2,tm,0,1,1)
  DrawDigit(22,0,s1,ns1,ts,0,0,1)
  DrawDigit(27,0,s2,ns2,ts,1,0,1)

  // draw pulsing white 'second' dots in remaining 2 columns
  br = (1-ms/1000)
  Pr[10][1] = br
  Pr[10][2] = br
  Pr[21][1] = br
  Pr[21][2] = br
  Pr[10][5] = br
  Pr[10][6] = br
  Pr[21][5] = br
  Pr[21][6] = br
  Pg[10][1] = br
  Pg[10][2] = br
  Pg[21][1] = br
  Pg[21][2] = br
  Pg[10][5] = br
  Pg[10][6] = br
  Pg[21][5] = br
  Pg[21][6] = br
  Pb[10][1] = br
  Pb[10][2] = br
  Pb[21][1] = br
  Pb[21][2] = br
  Pb[10][5] = br
  Pb[10][6] = br
  Pb[21][5] = br
  Pb[21][6] = br
}

// Draw from the framebuffer

export function render(index) {
  coords = coordmap[index]
  x = coords[0]
  y = coords[1]

  rgb(Pr[x][y], Pg[x][y], Pb[x][y])
}
1 Like
5

For reference: gamma and antialiasing

6

Is there a reason you decided to do RGB rather than HSV? RGB only makes sense in some cases, and I believe this isn’t one of them. HSV , you set the hue per digit, the saturation per digit, and the V (brightness) is the only thing you need to vary, and it works well for shifting lines (the closer to your actual line location, the brighter, and you can fade out the rest as desired)

Up to you, of course, but reduces the lookups by about 3 fold, so much faster.

That’s at first glance, and I look forward to playing with this, greatly. Lots of good code ideas in here.

7

I saw the “alpha” blending in the code and figured this was easier to do in RGB mode. This probably helps make the junctions of the wulines more smooth.

8

The morphing is super cool!

9

I went with RGB because that’s what the existing Wu line implementation used… and if I went with HSV, I’d have to include my own HSVtoRGB code. I’m going to give that a shot because I think it will help resolve the gamma issues. In my previous bouncing lines demo, setting gamma to make the AA smooth ruined the color balance.

That ‘gamma and antialiasing’ link I posted implies that ~sqrt(2) is a good gamma level, but that will vary by LED type and brightness.

This is a SMOP so I’ll post an updated version soon!

10

It’s called ‘a’ for alpha for historical reasons at this point. It’s really a brightness pre-multiplier, and then PixelMax only updates components that are brighter, which is indeed as you suggest to make the junctions smooth.

11

The AA is definitely better with HSV = (Digit color, 1, a×a×a) where a is the value from the AA algorithm. Down to 30fps but that’s no surprise!

// This pattern creates a rectangular framebuffer
// and does its own integer coordinate mapping
// and draws a digital clock
// with morphing digits
// using Xiaolin Wu's antialiased line algorithm.

var blur = 0
export function sliderMotion_Blur(v) {
  blur = v * 0.9
}

// Duplicate PixelBlaze 'Mapper' functionality without normalizing

var width = 32
var height = 8

var coordmap = array(pixelCount)

for (index=0; index<pixelCount; index++) {
  x = floor(index / height)
  y = index % height
  y = x % 2 == 1 ? height - 1 - y : y // I have a zigzag 32x8 LED matrix
  coords = array(2)
  coords[0] = x
  coords[1] = y
  coordmap[index] = coords
}

// HSV to RGB using global variables

var r, g, b // filled by HSVtoRGB

function HSVtoRGB(h, s, v) {
    var i, f, p, q, t;
    i = floor(h * 6);
    f = h * 6 - i;
    p = v * (1 - s);
    q = v * (1 - f * s);
    t = v * (1 - (1 - f) * s);
    im6 = i % 6
    if (im6 == 0) {
      r = v; g = t; b = p;
    } else { if (im6 == 1) {
      r = q; g = v; b = p;
    } else { if (im6 == 2) {
      r = p; g = v; b = t;
    } else { if (im6 == 3) {
      r = p; g = q; b = v;
    } else { if (im6 == 4) {
      r = t; g = p; b = v;
    } else {if (im6 == 5) {
      r = v; g = p; b = q;
    }}}}}}
}

// RGB framebuffer
// ... Storage

var Pr = array(width); for (i=0; i<width; i++) Pr[i] = array(height)
var Pg = array(width); for (i=0; i<width; i++) Pg[i] = array(height)
var Pb = array(width); for (i=0; i<width; i++) Pb[i] = array(height)

// ... Render a pixel
//  - Only used by WuLine, so we do 'alpha' here to keep WuLine readable
//  - Uses max() so overlapping line pixels don't make bright spots

function PixelMax(x,y,a,h,s,v) {
  //x = floor(x)
  //y = floor(y)
  HSVtoRGB(h,s,v*a*a*a)
  if (x >= 0 && x < width && y >= 0 && y < height) {
    Pr[x][y] = max(Pr[x][y], r)
    Pg[x][y] = max(Pg[x][y], g)
    Pb[x][y] = max(Pb[x][y], b)
  }
}

// Xiaolin Wu's antialiased line algorithm
// Adapted from https://gist.github.com/polyamide/3f33cb4dc69e22fbf8b66cee39b78d60
// (replaced utility functions with PixelBlaze built-ins)

function WuLine(x0, y0, x1, y1, r, g, b) {
  if (x0 == x1 && y0 == y1) return

  steep = abs(y1 - y0) > abs(x1 - x0);

  if (steep) {
    tmp = y0; y0 = x0; x0 = tmp;
    tmp = y1; y1 = x1; x1 = tmp;
  }

  if (x0 > x1) {
    tmp = x0; x0 = x1; x1 = tmp;
    tmp = y0; y0 = y1; y1 = tmp;
  }

  dx = x1 - x0;
  dy = y1 - y0;
  gradient = dy / dx;

  xEnd = round(x0);
  yEnd = y0 + gradient * (xEnd - x0);
  xGap = 1 - frac(x0 + 0.5);
  xPx1 = xEnd;
  yPx1 = trunc(yEnd);

  if (steep) {
    PixelMax(yPx1, xPx1, 1 - frac(yEnd) * xGap, r, g, b )
    PixelMax(yPx1 + 1, xPx1, frac(yEnd) * xGap, r, g, b )
  } else {
    PixelMax(xPx1, yPx1, 1 - frac(yEnd) * xGap, r, g, b )
    PixelMax(xPx1, yPx1 + 1, frac(yEnd) * xGap, r, g, b )
  }

  intery = yEnd + gradient;

  xEnd = round(x1);
  yEnd = y1 + gradient * (xEnd - x1);
  xGap = frac(x1 + 0.5);

  xPx2 = xEnd;
  yPx2 = trunc(yEnd);

  if (steep) {
    PixelMax(yPx2, xPx2, 1 - frac(yEnd) * xGap, r, g, b )
    PixelMax(yPx2 + 1, xPx2, frac(yEnd) * xGap, r, g, b )
  } else {
    PixelMax(xPx2, yPx2, 1 - frac(yEnd) * xGap, r, g, b )
    PixelMax(xPx2, yPx2 + 1, frac(yEnd) * xGap, r, g, b )
  }

  if (steep) {
    for (x = xPx1 + 1; x <= xPx2 - 1; x++) {
      PixelMax(trunc(intery), x, 1 - frac(intery), r, g, b )
      PixelMax(trunc(intery) + 1, x, frac(intery), r, g, b )
      intery = intery + gradient;
    }
  } else {
    for (x = xPx1 + 1; x <= xPx2 - 1; x++) {
      PixelMax(x, trunc(intery), 1 - frac(intery), r, g, b )
      PixelMax(x, trunc(intery) + 1, frac(intery), r, g, b )
      intery = intery + gradient
    }
  }
}

// Digit data - 5x8 pixels
// - each digit is 7 sequential lines
//   represented by a list of 8 x,y coordinates

var Digits = array(10)
for (i=0;i<10;i++){
  Digits[i]=array(8)
  for (j=0;j<8;j++){
    Digits[i][j]=array(2)
  }
}

Digits[0][0][0] = 1
Digits[0][0][1] = 0
Digits[0][1][0] = 3
Digits[0][1][1] = 0
Digits[0][2][0] = 4
Digits[0][2][1] = 1
Digits[0][3][0] = 4
Digits[0][3][1] = 6
Digits[0][4][0] = 3
Digits[0][4][1] = 7
Digits[0][5][0] = 1
Digits[0][5][1] = 7
Digits[0][6][0] = 0
Digits[0][6][1] = 6
Digits[0][7][0] = 0
Digits[0][7][1] = 1
Digits[1][0][0] = 0
Digits[1][0][1] = 2
Digits[1][1][0] = 2
Digits[1][1][1] = 0
Digits[1][2][0] = 2
Digits[1][2][1] = 1
Digits[1][3][0] = 2
Digits[1][3][1] = 3
Digits[1][4][0] = 2
Digits[1][4][1] = 5
Digits[1][5][0] = 2
Digits[1][5][1] = 7
Digits[1][6][0] = 0
Digits[1][6][1] = 7
Digits[1][7][0] = 4
Digits[1][7][1] = 7
Digits[2][0][0] = 0
Digits[2][0][1] = 1
Digits[2][1][0] = 1
Digits[2][1][1] = 0
Digits[2][2][0] = 3
Digits[2][2][1] = 0
Digits[2][3][0] = 4
Digits[2][3][1] = 1
Digits[2][4][0] = 4
Digits[2][4][1] = 2
Digits[2][5][0] = 0
Digits[2][5][1] = 6
Digits[2][6][0] = 0
Digits[2][6][1] = 7
Digits[2][7][0] = 4
Digits[2][7][1] = 7
Digits[3][0][0] = 0
Digits[3][0][1] = 1
Digits[3][1][0] = 2
Digits[3][1][1] = 0
Digits[3][2][0] = 4
Digits[3][2][1] = 1
Digits[3][3][0] = 2
Digits[3][3][1] = 3
Digits[3][4][0] = 3
Digits[3][4][1] = 4
Digits[3][5][0] = 4
Digits[3][5][1] = 6
Digits[3][6][0] = 2
Digits[3][6][1] = 7
Digits[3][7][0] = 0
Digits[3][7][1] = 6
Digits[4][0][0] = 3
Digits[4][0][1] = 0
Digits[4][1][0] = 3
Digits[4][1][1] = 3
Digits[4][2][0] = 4
Digits[4][2][1] = 3
Digits[4][3][0] = 3
Digits[4][3][1] = 3
Digits[4][4][0] = 3
Digits[4][4][1] = 7
Digits[4][5][0] = 3
Digits[4][5][1] = 3
Digits[4][6][0] = 0
Digits[4][6][1] = 3
Digits[4][7][0] = 0
Digits[4][7][1] = 0
Digits[5][0][0] = 4
Digits[5][0][1] = 0
Digits[5][1][0] = 0
Digits[5][1][1] = 0
Digits[5][2][0] = 0
Digits[5][2][1] = 4
Digits[5][3][0] = 2
Digits[5][3][1] = 3
Digits[5][4][0] = 4
Digits[5][4][1] = 4
Digits[5][5][0] = 4
Digits[5][5][1] = 6
Digits[5][6][0] = 2
Digits[5][6][1] = 7
Digits[5][7][0] = 0
Digits[5][7][1] = 6
Digits[6][0][0] = 3
Digits[6][0][1] = 0
Digits[6][1][0] = 2
Digits[6][1][1] = 0
Digits[6][2][0] = 0
Digits[6][2][1] = 2
Digits[6][3][0] = 0
Digits[6][3][1] = 6
Digits[6][4][0] = 2
Digits[6][4][1] = 7
Digits[6][5][0] = 4
Digits[6][5][1] = 5
Digits[6][6][0] = 3
Digits[6][6][1] = 3
Digits[6][7][0] = 1
Digits[6][7][1] = 3
Digits[7][0][0] = 0
Digits[7][0][1] = 0
Digits[7][1][0] = 2
Digits[7][1][1] = 0
Digits[7][2][0] = 4
Digits[7][2][1] = 0
Digits[7][3][0] = 4
Digits[7][3][1] = 1
Digits[7][4][0] = 2
Digits[7][4][1] = 3
Digits[7][5][0] = 1
Digits[7][5][1] = 5
Digits[7][6][0] = 1
Digits[7][6][1] = 7
Digits[7][7][0] = 2
Digits[7][7][1] = 7
Digits[8][0][0] = 1
Digits[8][0][1] = 0
Digits[8][1][0] = 3
Digits[8][1][1] = 0
Digits[8][2][0] = 4
Digits[8][2][1] = 1
Digits[8][3][0] = 0
Digits[8][3][1] = 5
Digits[8][4][0] = 1
Digits[8][4][1] = 7
Digits[8][5][0] = 3
Digits[8][5][1] = 7
Digits[8][6][0] = 4
Digits[8][6][1] = 5
Digits[8][7][0] = 0
Digits[8][7][1] = 1
Digits[9][0][0] = 3
Digits[9][0][1] = 3
Digits[9][1][0] = 1
Digits[9][1][1] = 3
Digits[9][2][0] = 0
Digits[9][2][1] = 1
Digits[9][3][0] = 1
Digits[9][3][1] = 0
Digits[9][4][0] = 3
Digits[9][4][1] = 0
Digits[9][5][0] = 4
Digits[9][5][1] = 1
Digits[9][6][0] = 4
Digits[9][6][1] = 3
Digits[9][7][0] = 1
Digits[9][7][1] = 7

// lerp is used on the line ends to morph the digits

function lerp(t,a,b){
  return a*(1-t)+b*t
}

// Draw a Digit
// - starting at x,y
// - morph each line end between d1,d2 using t (0..1)
// - draw WuLine with r,g,b

function DrawDigit(x,y,dd1,dd2,t,r,g,b) {
  d1 = Digits[dd1]

  if (dd1==dd2) { // skip lerp if digits are the same
    for (L=0;L<7;L++) {
      WuLine(
        x + d1[L][0],
        y + d1[L][1],
        x + d1[L+1][0],
        y + d1[L+1][1],
        r, g, b
      )
    }
  } else {
    d2 = Digits[dd2]
    for (L=0;L<7;L++) {
      WuLine(
        x + lerp(t,d1[L][0],d2[L][0]),
        y + lerp(t,d1[L][1],d2[L][1]),
        x + lerp(t,d1[L+1][0],d2[L+1][0]),
        y + lerp(t,d1[L+1][1],d2[L+1][1]),
        r, g, b
      )
    }
  }
}

// Render-related variables persistent between frames
export var lastsecond = -1
export var ms = 0

// Clear (or fade if blur enabled) framebuffer
// and render the current time

export function beforeRender(delta) {
  for (i=0; i<width; i++) {
    for (j=0; j<height; j++) {
      Pr[i][j] = blur * Pr[i][j]
      Pg[i][j] = blur * Pg[i][j]
      Pb[i][j] = blur * Pb[i][j]
    }
  }

  // Extract digits for each part of current time
  // and next time unit with 'n' prefix
  // (e.g. 'nm2' is second digit of next minute)
  // and collect milliseconds from delta in 'ms'
  hour = clockHour()
  h2 = hour % 10
  h1 = (hour - h2)/10

  nexthour = (hour + 1) % 24
  nh2 = nexthour % 10
  nh1 = (nexthour - nh2)/10

  minute = clockMinute()
  m2 = minute % 10
  m1 = (minute - m2)/10

  nextminute = (minute + 1) % 60
  nm2 = nextminute % 10
  nm1 = (nextminute - nm2)/10

  second = clockSecond()
  s2 = second % 10
  s1 = (second - s2)/10

  nextsecond = (second + 1) % 60
  ns2 = nextsecond % 10
  ns1 = (nextsecond - ns2)/10

  if (second == lastsecond) {
    ms = clamp(ms + delta, 0, 1000)
  } else {
    ms = 0
    lastsecond = second
  }

  // transition to next second digit
  // with wave transition around (0.1 .. 0.9)
  // hint: 1000 / 1428.57142 =~ 0.7
  ts = clamp( wave(clamp(ms/1428.57142-0.1,0,1)-0.25), 0,1)
  tm = second == 59 ? ts : 0
  th = (second == 59 && minute == 59) ? tm : 0

  // Rainbow digits because they are right next to each other
  DrawDigit(0,0,h1,nh1,th,0,1,1)
  DrawDigit(5,0,h2,nh2,th,1/6,1,1)
  DrawDigit(11,0,m1,nm1,tm,1/3,1,1)
  DrawDigit(16,0,m2,nm2,tm,1/2,1,1)
  DrawDigit(22,0,s1,ns1,ts,2/3,1,1)
  DrawDigit(27,0,s2,ns2,ts,5/6,1,1)

  // draw pulsing white 'second' dots in remaining 2 columns
  br = (1-ms/1000)
  Pr[10][1] = br
  Pr[10][2] = br
  Pr[21][1] = br
  Pr[21][2] = br
  Pr[10][5] = br
  Pr[10][6] = br
  Pr[21][5] = br
  Pr[21][6] = br
  Pg[10][1] = br
  Pg[10][2] = br
  Pg[21][1] = br
  Pg[21][2] = br
  Pg[10][5] = br
  Pg[10][6] = br
  Pg[21][5] = br
  Pg[21][6] = br
  Pb[10][1] = br
  Pb[10][2] = br
  Pb[21][1] = br
  Pb[21][2] = br
  Pb[10][5] = br
  Pb[10][6] = br
  Pb[21][5] = br
  Pb[21][6] = br
}

// Draw from the framebuffer

export function render(index) {
  coords = coordmap[index]
  x = coords[0]
  y = coords[1]

  rgb(Pr[x][y], Pg[x][y], Pb[x][y])
}
12

Definitely better antialiasing appearance and motion blur!

In this video I constrained the motion blur to the middle 50% of the second instead of 70%, and had a high motion blur. The AA is a bit hard to see in the video but looks spiffy. The bouncing lines demo is also much improved with this technique. So cool that I will make a video of that next!

13

AA lines looking much better with HSV mixing:

Thanks for the fruitful discussion @jeff and @Scruffynerf !

14

These AA lines make me want to make a version of Qix … I wonder how low-res that could be playable. I first played it as Styx which ran at only 160x100: Styx IBM PC CGA Game

1 Like
15

I did a graph that showed that while the usual gamma code for LEDs wasn’t exactly the same, using either V squared or better yet V cubed, it was pretty close curve wise, and way cheap to calculate.

Yes, your LEDs may be different but without some specific testing to confirm, it’ll likely still be within the expected range, and this would be “good enough”

16

Yeah, cubed looked about right for me… in my dimly-lit attic. It might be different outside, where the LEDs on full power will give the sun a run for its money!

17

I have a 32x8 matrix, but I’ve got my 16x16 hooked up right now, and playing with this, and if I set it to 16x16, I get 3 numbers (and blinkers) on half the matrix. I could modify this to add the other 3 numbers under it, but then it’ll be awkward:

12:3
4:56

so I’m thinking a 16x16 layout would be better as
1:3:5
2 4 6

will continue to play with it…

1 Like
18

The stacked values would work, but then there is only one extra column per row for the blinkers.

Don’t worry — for my next trick, I’m making an analog clock with sweeping second hand for 16x16 matrices. Also, a radar screen!

1 Like
19

In the process of removing all RGB (among other things)…

16257049162941897870757942046553
162570491629418978707579420465533024×4032 2.08 MB

Blocky numbers look good…
But dammit, now I want a full 5x8 (really 5x7) font as vector lines, for a Dali-text pattern…

I’m torn between vector and bitmap font though… Both are useful in different ways.

Have to revisit the text scroller pattern.

1 Like
20

If you keep to straight and 45° lines then it will look just like a bitmap font, except when it’s morphing. I think every useful character could be done like that with maybe 10 lines (try it and see! :stuck_out_tongue: ). As with all such projects, all it requires is a pencil and paper …

digits-5x8
digits-5x81024×768 271 KB

… but the lack of support for characters in PB’s pidgin JS will make it harder to use than digits were. Maybe the best approach would be like the mapper: Type a string into the web interface, and it will set a global variable array of asc(character) for lookup, or maybe even store the vector fonts on the web side somewhere and have a string → array of arrays mapper.

However, it’s not impossible to input text directly on the PB. I once had Hokey Spokes which had two buttons - one to step through the alphabet, another to step to the next character. It also would talk to a palm pilot over IR, and the spokes would keep their patterns in sync over IR too.

1 Like
